2024 Rewind: Orthogonal Polynomial Regression in Bambi

This is the second of two notebooks I wrote and contributed to Bambi’s example documentation back in 2024. The first post, covering polynomial regression basics, is here. This one goes deeper into what happens when you use the poly keyword in a Bambi formula. Specifically, looking at the orthogonalization that happens under the hood.

The original notebook lives in the Bambi docs. What follows is the content, lightly adapted for this blog.

Orthogonal Polynomial Regression

While the content here can stand alone, it is a companion to the polynomial regression post, which contains additional useful examples.

import warnings

import arviz as az
import bambi as bmb
import formulae
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scipy
import seaborn as sns
from typing import Optional

SEED = 1234
az.style.use("arviz-darkgrid")
warnings.filterwarnings("ignore")

Revisiting Polynomial Regression

To start, we’ll recreate the projectile motion data defined in the polynomial regression post with \(x_0 = 1.5\) \(m\) and \(v_0 = 7\) \(m\)/\(s\). This will follow:

\[x_f = \frac{1}{2} g t^2 + v_0 t + x_0\]

Where \(g\) will be the acceleration of gravity on Earth, \(-9.81\) \(m\)/\(s^2\). First we’ll generate the data.

g = -9.81
v0 = 7
x0 = 1.5
t = np.linspace(0, 2, 100)
x_projectile = (1/2) * g * t**2 + v0 * t + x0
noise = np.random.normal(0, 0.2, x_projectile.shape)
x_obs_projectile = x_projectile + noise
df_projectile = pd.DataFrame({"t": t, "x": x_obs_projectile, "x_true": x_projectile})
df_projectile = df_projectile[df_projectile["x"] >= 0]

plt.scatter(df_projectile.t, df_projectile.x, label='Observed Displacement', color="C0")
plt.plot(df_projectile.t, df_projectile.x_true, label='True Function', color="C1")
plt.xlabel('Time (s)')
plt.ylabel('Displacement (m)')
plt.ylim(bottom=0)
plt.legend()
plt.show()

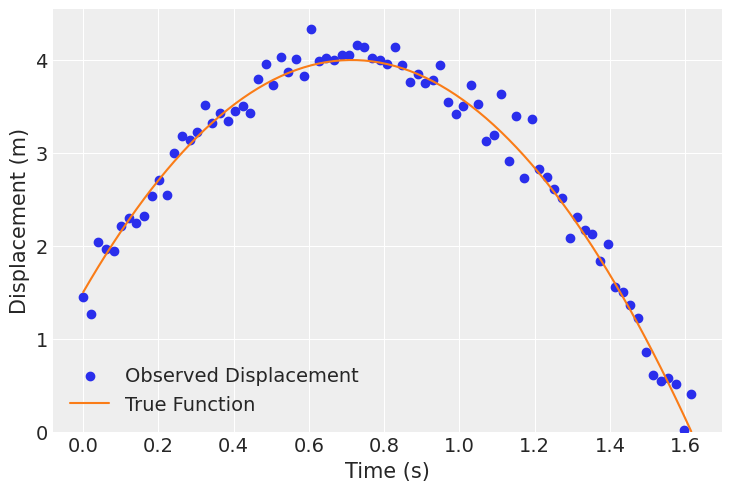

Projectile motion data

Putting this into Bambi, we set \(\beta_2 = \frac{g}{2}\), \(\beta_1 = v_0\), and \(\beta_0 = x_0\), then perform the following regression:

\[x_f = \beta_2 t^2 + \beta_1 t + \beta_0\]

We expect to recover \(\beta_2 = -4.905\), \(\beta_1 = 7\), \(\beta_0 = 1.5\) from our fit. We start with the approach from the other notebook where we explicitly tell formulae to calculate coefficients on \(t^2\) and \(t\).

model_projectile_all_terms = bmb.Model("x ~ I(t**2) + t + 1", df_projectile)
fit_projectile_all_terms = model_projectile_all_terms.fit(
    idata_kwargs={"log_likelihood": True}, random_seed=SEED
)
az.summary(fit_projectile_all_terms)

            mean     sd  hdi_3%  hdi_97%  mcse_mean  mcse_sd  ess_bulk  ess_tail  r_hat
sigma      0.173  0.014   0.148    0.199      0.000    0.000    2978.0    2514.0    1.0
Intercept  1.455  0.057   1.346    1.558      0.001    0.001    2553.0    2663.0    1.0
I(t ** 2) -4.999  0.097  -5.181   -4.817      0.002    0.002    2067.0    1996.0    1.0
t          7.186  0.161   6.872    7.483      0.003    0.003    2120.0    1967.0    1.0

The parameters are recovered as anticipated.

If you want to include all terms of a variable up to a given degree, you can also use the keyword poly. So if we want the linear and quadratic effects, as in this case, we would designate poly(t, 2).

model_projectile_poly = bmb.Model("x ~ poly(t, 2) + 1", df_projectile)
fit_projectile_poly = model_projectile_poly.fit(
    idata_kwargs={"log_likelihood": True}, random_seed=SEED
)
az.summary(fit_projectile_poly)

                mean     sd  hdi_3%  hdi_97%  mcse_mean  mcse_sd  ess_bulk  ess_tail  r_hat
sigma          0.173  0.014   0.147    0.201      0.000    0.000    4781.0    3156.0    1.0
Intercept      2.883  0.019   2.849    2.919      0.000    0.000    6952.0    3211.0    1.0
poly(t, 2)[0] -3.792  0.173  -4.109   -3.458      0.002    0.003    6298.0    2977.0    1.0
poly(t, 2)[1] -8.987  0.171  -9.307   -8.669      0.002    0.003    6499.0    3087.0    1.0

Now there are fitted coefficients for \(t\) and \(t^2\), but wait, those aren’t the parameters we used! What’s going on here?

The poly Keyword

To fully understand what’s going on under the hood, we must wade into some linear algebra. When the poly keyword is used, instead of directly using the values of \(x, x^2, x^3, \dots, x^n\), it converts them into orthogonal polynomials. When including the effect from multiple polynomial terms, there will generally be correlation between them. Including all of these into a model can be a problem from the fitting perspective due to multicollinearity. By orthogonalizing, the correlation is removed by design.

As it turns out, it’s difficult to get any information on how the orthogonalization is performed. Here is the implementation for poly in formulae, but to fully understand, I went into the source code for the R Stats library where poly is defined as a function for use on any vector, and took a look at its code.

Here’s a step-by-step summary, along with a toy example for \(x^4\).

  • The data is first centered around the mean for stability
X = np.array([1, 2, 3, 4, 5])

mean = np.mean(X)
X_centered = X - mean
print(f"Array: {X}, mean: {mean}.\nCentered: {X_centered}")

Array: [1 2 3 4 5], mean: 3.0.
Centered: [-2. -1.  0.  1.  2.]
  • A Vandermonde matrix is created. This just takes the input data and generates a matrix where columns represent increasing polynomial degrees. In this example, the first column is \(x^0\), a constant term. The second is \(x^1\), or the centered data. The third column is \(x^2\), the fourth is \(x^3\), the last is \(x^4\).
degree = 4
simple_vander = np.vander(X_centered, N=degree+1, increasing=True)
simple_vander

array([[ 1., -2.,  4., -8., 16.],
       [ 1., -1.,  1., -1.,  1.],
       [ 1.,  0.,  0.,  0.,  0.],
       [ 1.,  1.,  1.,  1.,  1.],
       [ 1.,  2.,  4.,  8., 16.]])

q, r = np.linalg.qr(simple_vander)
print("Orthogonal matrix Q:\n", q.round(4))
print("\nUpper triangular matrix R:\n", r.round(4))

Orthogonal matrix Q:
 [[-0.4472 -0.6325  0.5345 -0.3162 -0.1195]
 [-0.4472 -0.3162 -0.2673  0.6325  0.4781]
 [-0.4472 -0.     -0.5345  0.     -0.7171]
 [-0.4472  0.3162 -0.2673 -0.6325  0.4781]
 [-0.4472  0.6325  0.5345  0.3162 -0.1195]]

Upper triangular matrix R:
 [[ -2.2361  -0.      -4.4721  -0.     -15.2053]
 [  0.       3.1623   0.      10.7517   0.    ]
 [  0.       0.       3.7417   0.      16.5702]
 [  0.       0.       0.       3.7947   0.    ]
 [  0.       0.       0.       0.      -2.8685]]
  • Last take the dot product of \(Q\) with the diagonal elements of \(R\). \(Q\) is then scaled to the magnitude of the polynomial degrees in \(R\). This serves as our transformation matrix which transforms input data into the space defined by the orthogonal polynomials.
diagonal = np.diag(np.diag(r))  # First call gets elements, second creates diag matrix
transformation_matrix = np.dot(q, diagonal)
print(transformation_matrix.round(4))

[[ 1.     -2.      2.     -1.2     0.3429]
 [ 1.     -1.     -1.      2.4    -1.3714]
 [ 1.     -0.     -2.      0.      2.0571]
 [ 1.      1.     -1.     -2.4    -1.3714]
 [ 1.      2.      2.      1.2     0.3429]]
  • From the transformation matrix, we get squared norms (norm2), which give us the scale of each polynomial. We also get the value by which we need to shift each polynomial to match the centered data (alpha).
norm2 = np.sum(transformation_matrix**2, axis=0)

weighted_sums = np.sum(
    (transformation_matrix**2) * np.reshape(X_centered, (-1, 1)),
    axis=0
)
normalized_sums = weighted_sums / norm2
adjusted_sums = normalized_sums + mean
alpha = adjusted_sums[:degree]

print(f"Norm2: {norm2}\nalpha: {alpha}")

Norm2: [ 5.         10.         14.         14.4         8.22857143]
alpha: [3. 3. 3. 3.]
  • Finally, we iteratively apply this to all desired polynomial degrees, shifting the data and scaling by the squared norms appropriately to maintain orthogonality with the prior term.
transformed_X = np.full((len(X), degree+1), np.nan)
transformed_X[:,0] = 1
transformed_X[:, 1] = X - alpha[0]
for i in range(1, degree):
    transformed_X[:, i + 1] = (
        (X - alpha[i]) * transformed_X[:, i] -
        (norm2[i] / norm2[i - 1]) * transformed_X[:, i - 1]
    )

transformed_X /= np.sqrt(norm2)
transformed_X

array([[ 4.47213595e-01, -6.32455532e-01,  5.34522484e-01,
        -3.16227766e-01,  1.19522861e-01],
       [ 4.47213595e-01, -3.16227766e-01, -2.67261242e-01,
         6.32455532e-01, -4.78091444e-01],
       [ 4.47213595e-01,  0.00000000e+00, -5.34522484e-01,
         2.34055565e-16,  7.17137166e-01],
       [ 4.47213595e-01,  3.16227766e-01, -2.67261242e-01,
        -6.32455532e-01, -4.78091444e-01],
       [ 4.47213595e-01,  6.32455532e-01,  5.34522484e-01,
         3.16227766e-01,  1.19522861e-01]])

This is now a matrix of orthogonalized polynomials of X. The first column is just a constant. The second column corresponds to the input \(x\), the next is \(x^2\) and so on. In most implementations, the constant term is eliminated, giving us the following final matrix.

transformed_X[:,1:]

array([[-6.32455532e-01,  5.34522484e-01, -3.16227766e-01,
         1.19522861e-01],
       [-3.16227766e-01, -2.67261242e-01,  6.32455532e-01,
        -4.78091444e-01],
       [ 0.00000000e+00, -5.34522484e-01,  2.34055565e-16,
         7.17137166e-01],
       [ 3.16227766e-01, -2.67261242e-01, -6.32455532e-01,
        -4.78091444e-01],
       [ 6.32455532e-01,  5.34522484e-01,  3.16227766e-01,
         1.19522861e-01]])

The approach shown in this derivation has been reproduced below as a Scikit-Learn style class, where the fit method calculates the coefficients and the transform method returns orthogonalized data. It is also at this gist, including the typical BaseEstimator, TransformerMixin inheritances.

class OrthogonalPolynomialTransformer:
    """Transforms input data using orthogonal polynomials."""

    def __init__(self, degree: int = 1) -> None:
        self.degree = degree + 1  # Account for constant term
        self.norm2 = None
        self.alpha = None

    def fit(self, X, y=None):
        """Calculate transformation matrix, extract norm2 and alpha."""
        self.norm2 = None
        self.alpha = None

        X = np.asarray(X).flatten()
        if self.degree >= len(np.unique(X)):
            raise ValueError(
                "'degree' must be less than the number of unique data points."
            )

        mean = np.mean(X)
        X_centered = X - mean

        vandermonde = np.vander(X_centered, N=self.degree + 1, increasing=True)
        Q, R = np.linalg.qr(vandermonde)

        diagonal = np.diag(np.diag(R))
        transformation_matrix = np.dot(Q, diagonal)
        self.norm2 = np.sum(transformation_matrix**2, axis=0)

        weighted_sums = np.sum(
            (transformation_matrix**2) * np.reshape(X_centered, (-1, 1)),
            axis=0
        )
        normalized_sums = weighted_sums / self.norm2
        adjusted_sums = normalized_sums + mean
        self.alpha = adjusted_sums[:self.degree]
        return self

    def transform(self, X):
        """Iteratively apply up to 'degree'."""
        X = np.asarray(X).flatten()
        transformed_X = np.empty((len(X), self.degree + 1))

        transformed_X[:, 0] = 1
        if self.degree > 0:
            transformed_X[:, 1] = X - self.alpha[0]

        if self.degree > 1:
            for i in range(1, self.degree):
                transformed_X[:, i + 1] = (
                    (X - self.alpha[i]) * transformed_X[:, i] -
                    (self.norm2[i] / self.norm2[i - 1]) * transformed_X[:, i - 1]
                )

        transformed_X /= np.sqrt(self.norm2)
        return transformed_X[:, 1:self.degree]

    def fit_transform(self, X, y=None):
        self.fit(X, y)
        return self.transform(X)

An example call is shown below. It’s worth noting that in this implementation, the constant term is not returned, the first column corresponds to \(x\), the second to \(x^2\), and the third to \(x^3\).

X = np.array([1, 2, 3, 4, 5])
poly3 = OrthogonalPolynomialTransformer(degree=3).fit(X)
poly3.transform(X)

array([[-6.32455532e-01,  5.34522484e-01, -3.16227766e-01],
       [-3.16227766e-01, -2.67261242e-01,  6.32455532e-01],
       [ 0.00000000e+00, -5.34522484e-01,  2.34055565e-16],
       [ 3.16227766e-01, -2.67261242e-01, -6.32455532e-01],
       [ 6.32455532e-01,  5.34522484e-01,  3.16227766e-01]])

This matches what you may get when calling the same function in R:

> poly(X, 4)
                 1          2             3          4
[1,] -6.324555e-01  0.5345225 -3.162278e-01  0.1195229
[2,] -3.162278e-01 -0.2672612  6.324555e-01 -0.4780914
[3,] -3.288380e-17 -0.5345225  9.637305e-17  0.7171372
[4,]  3.162278e-01 -0.2672612 -6.324555e-01 -0.4780914
[5,]  6.324555e-01  0.5345225  3.162278e-01  0.1195229

or, most relevant, from formulae,

formulae_poly = formulae.transforms.Polynomial()
formulae_poly(X, 4)

array([[-0.63245553,  0.53452248, -0.31622777,  0.11952286],
       [-0.31622777, -0.26726124,  0.63245553, -0.47809144],
       [ 0.        , -0.53452248, -0.        ,  0.71713717],
       [ 0.31622777, -0.26726124, -0.63245553, -0.47809144],
       [ 0.63245553,  0.53452248,  0.31622777,  0.11952286]])

For an example, applying this function to x over a domain from 0-10,

x = np.linspace(0, 10, 100)
x2 = x**2

transformer = OrthogonalPolynomialTransformer(degree=2)
x_orthogonalized = transformer.fit_transform(x)
x_orth = x_orthogonalized[:, 0]
x2_orth = x_orthogonalized[:, 1]

data = np.vstack([x, x2, x_orth, x2_orth]).T
df = pd.DataFrame(data, columns=['x', '$x^2$', '$x$ Orth', '$x^2$ Orth'])
correlation_matrix = df.corr()
sns.heatmap(correlation_matrix, annot=True, cmap='Reds')
plt.xticks(rotation=45)
plt.show()

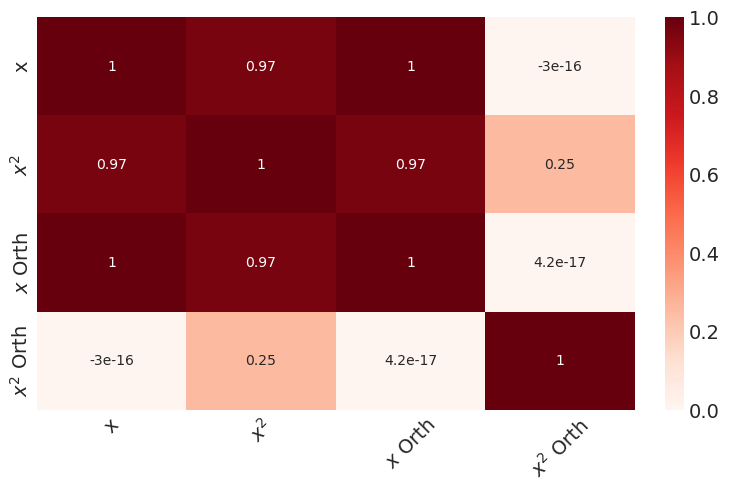

Correlation heatmap

We now see that the orthogonalized version of \(x\) and \(x^2\) are no longer correlated to each other. Next, we construct a response variable and plot against it.

y = 3 * x2 + x

fig, axs = plt.subplots(2, 2, figsize=(8, 6), sharey='row')

plots = [
    (x, 'x', False),
    (x2, '$x^2$', False),
    (x_orth, 'Orthogonalized $x$', True),
    (x2_orth, 'Orthogonalized $x^2$', False)
]

for ax, plot_data in zip(axs.flat, plots):
    x_val, xlabel = plot_data[:2]
    if len(plot_data) == 3 and plot_data[2]:
        sns.regplot(x=x_val, y=y, ax=ax, line_kws={"color": "C1"})
    else:
        sns.scatterplot(x=x_val, y=y, ax=ax)
    ax.set(xlabel=xlabel, ylabel='y')

    if plot_data[1] == 'Orthogonalized $x^2$':
        ax.axvline(0, color='k', linestyle='--')

plt.tight_layout()
plt.show()

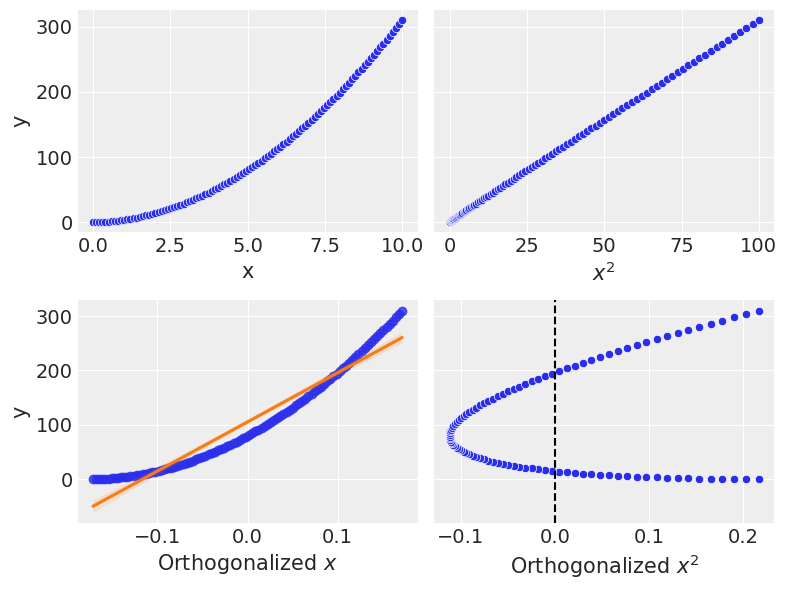

Orthogonalized scatter plots

The top half shows the response variable against \(x\) and \(x^2\), this should look familiar.

The bottom half shows the new orthogonalized polynomial terms. First, you’ll notice the domain is centered at 0 and more compressed than the original scale, which is done within the orthogonalization process. Otherwise, the \(x\) term is the same. Remember in the construction, the first order is untouched, then subsequent terms are built orthogonal to the first degree polynomial.

I’ve shown a linear fit on top of the first order term. What you’ll notice is that the orthogonalized \(x^2\) correspond to the residuals of this line. At the lowest values of \(y\), the fit is poor, and this is where the orthogonalized \(x^2\) is highest. As the first order term crosses the linear fit, you see the orthogonalized \(x^2\) cross zero, then go to negative values as it dips under the linear fit. It crosses 0 one more time and then is once again poor at the highest values shown. Since the \(x^2\) is proportional to the residuals of the first order term, if we plot the orthogonalized \(x^2\) term against the residuals, we should see a linear trend.

slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(x_orth, y)

y_pred = intercept + slope * x_orth
residuals = y - y_pred

plt.figure(figsize=(10, 5))
plt.subplot(1, 2, 1)
plt.scatter(x_orth, y, label='Original data')
plt.plot(x_orth, y_pred, color='C1', label='Fitted line')
plt.xlabel('$x$ Orth')
plt.ylabel('y')
plt.title('$x$ Orth vs y with Linear Fit')
plt.legend()

plt.subplot(1, 2, 2)
plt.scatter(x2_orth, residuals)
plt.xlabel('$x^2$ Orth')
plt.ylabel('Residuals')
plt.title('$x^2$ Orth vs Residuals')
plt.axhline(0, color='black', linestyle='--')

plt.tight_layout()
plt.show()

Residuals linear trend

And, in fact, the linear trend bears out when plotting the orthogonal \(x^2\) vs the residuals.

We can take this a degree higher and look at a cubic term.

x3 = x**3
x2 = x**2
y_cubic = 2.5 * x3 - 15 * x2 + 55 * x

transformer = OrthogonalPolynomialTransformer(degree=3)
x_orthogonalized = transformer.fit_transform(x)
x_orth = x_orthogonalized[:, 0]
x2_orth = x_orthogonalized[:, 1]
x3_orth = x_orthogonalized[:, 2]

fig, axs = plt.subplots(2, 3, figsize=(12, 8), sharey='row')

plots = [
    (x, 'x', 'x vs y', False),
    (x2, '$x^2$', '$x^2$ vs y', False),
    (x3, '$x^3$', '$x^3$ vs y', False),
    (x_orth, '$x$ Orth', '$x$ Orth vs y', True),
    (x2_orth, '$x^2$ Orth', '$x^2$ Orth vs y', True),
    (x3_orth, '$x^3$ Orth', '$x^3$ Orth vs y', False)
]

for ax, plot_data in zip(axs.flat, plots):
    x_val, xlabel, title = plot_data[:3]
    if len(plot_data) == 4 and plot_data[3]:
        sns.regplot(x=x_val, y=y_cubic, ax=ax, line_kws={"color": "C1"})
    else:
        sns.scatterplot(x=x_val, y=y_cubic, ax=ax)
    ax.set(xlabel=xlabel, ylabel='y', title=title)

    if title in ('$x^2$ Orth vs y', '$x^3$ Orth vs y'):
        ax.axvline(0, color='k', linestyle='--')

plt.tight_layout()
plt.show()

Cubic scatter plots

At a cubic level, it’s a bit more difficult to see the trends, however, the procedure is still the same. We can model each subsequent term against the residuals of the prior, and we can see that since this data was constructed from a cubic function, the \(x^3\) plot against the residuals of the \(x^2\) term is linear.

slope, intercept, r_value, p_value, std_err = scipy.stats.linregress(x_orth, y_cubic)
y_pred = intercept + slope * x_orth
residuals = y_cubic - y_pred

slope_res, intercept_res, r_value_res, p_value_res, std_err_res = scipy.stats.linregress(
    x2_orth, residuals
)
residuals_pred = intercept_res + slope_res * x2_orth
second_order_residuals = residuals - residuals_pred

plt.figure(figsize=(15, 5))

plt.subplot(1, 3, 1)
sns.scatterplot(x=x_orth, y=y_cubic, hue=np.arange(len(x_orth)),
                palette="viridis", legend=False)
plt.plot(x_orth, y_pred, color='black', label='Linear Model')
plt.xlabel('$x$ Orth')
plt.ylabel('y')
plt.title('$x$ Orth vs y with Linear Fit')
plt.legend()

plt.subplot(1, 3, 2)
sns.scatterplot(x=x2_orth, y=residuals, hue=np.arange(len(x2_orth)),
                palette="viridis", legend=False)
plt.plot(x2_orth, residuals_pred, color='black')
plt.xlabel('$x^2$ Orth')
plt.ylabel('Residuals')
plt.title('$x^2$ Orth vs Residuals')
plt.axhline(0, color='grey', linestyle='--', zorder=-1)

plt.subplot(1, 3, 3)
sns.scatterplot(x=x3_orth, y=second_order_residuals, hue=np.arange(len(x3_orth)),
                palette="viridis", legend=False)
plt.xlabel('$x^3$ Orth')
plt.ylabel('Second Order Residuals')
plt.title('$x^3$ Orth vs Second Order Residuals')
plt.axhline(0, color='grey', linestyle='--', zorder=-1)
plt.annotate('Point hue denotes index',
             xy=(0.99, 0.05), ha='right', xycoords='axes fraction',
             fontsize=14, color='black')

plt.tight_layout()
plt.show()

Cubic residuals

The main takeaway of this deep dive is the following: The poly keyword when used in a formula creates orthogonal polynomials. This is well-suited for fitting statistical models, since it eliminates the risk of multicollinearity between terms.

This wasn’t used in the other notebook since we were trying to recover parameters associated with each term. However, if you’re building a statistical model, especially one in which prediction is the focus, they may be the appropriate approach.

As one final note, the formulae version of poly does include a raw argument, which allows you to get the non-orthogonalized versions of each polynomial term. You can call that in Bambi like bmb.Model("y ~ poly(x, 4, raw=True)", df).

Orthogonal Polynomials in Practice

In order to see the poly keyword in action, we’ll take a look at the cars dataset. This dataset, preloaded into Seaborn, includes information on cars manufactured between 1970-1982. First we’ll load it in and take a look at the included variables.

df_mpg = sns.load_dataset("mpg")
df_mpg.head()

    mpg  cylinders  displacement  horsepower  weight  acceleration  model_year origin                       name
0  18.0          8         307.0       130.0    3504          12.0          70    usa  chevrolet chevelle malibu
1  15.0          8         350.0       165.0    3693          11.5          70    usa          buick skylark 320
2  18.0          8         318.0       150.0    3436          11.0          70    usa         plymouth satellite
3  16.0          8         304.0       150.0    3433          12.0          70    usa              amc rebel sst
4  17.0          8         302.0       140.0    3449          10.5          70    usa                ford torino

In this example, we’ll take a look at how a car’s fuel efficiency (mpg) relates to its horsepower (hp).

To start, we’ll just plot the joint distribution, as well as the distribution of the response variable.

df_mpg = df_mpg.dropna(subset=["horsepower", "mpg"])

plt.figure(figsize=(14, 6))
plt.subplot(1, 2, 1)
sns.regplot(data=df_mpg, x="horsepower", y="mpg", line_kws={"color": "firebrick"})

plt.subplot(1, 2, 2)
sns.histplot(df_mpg["mpg"], edgecolor="black", kde=True)
plt.xlabel('MPG')
plt.ylabel('Count')
plt.title('Histogram of MPG')

plt.tight_layout()
plt.show()

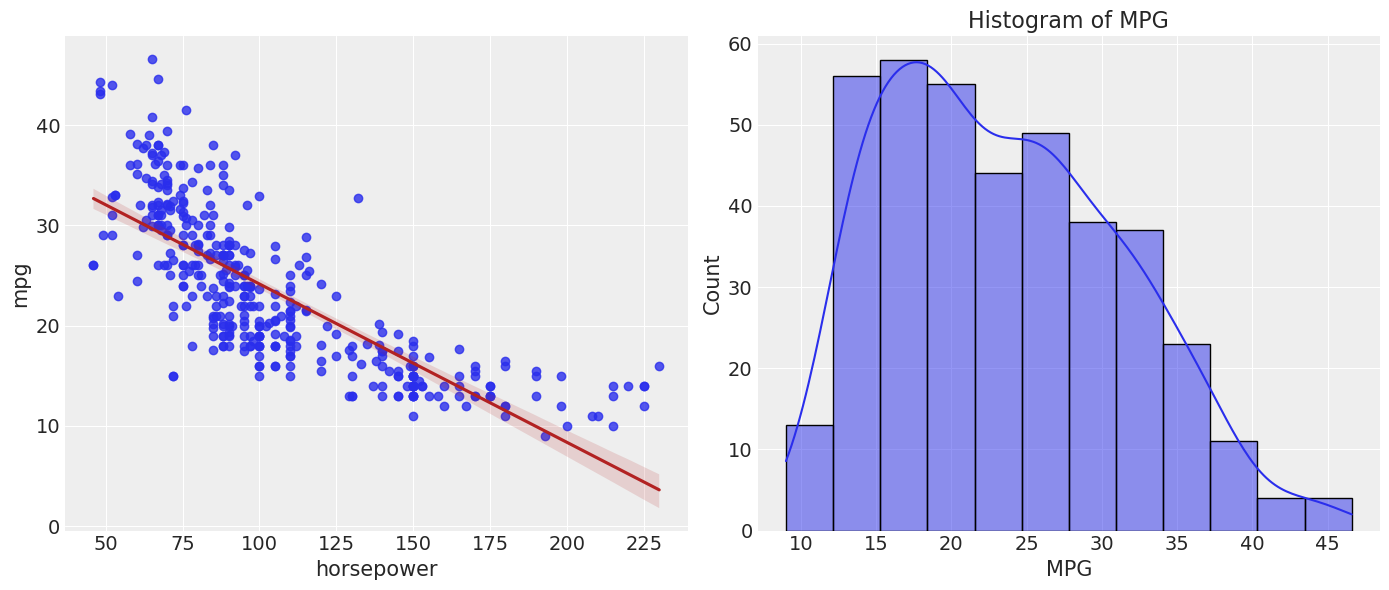

MPG vs horsepower joint distribution

Immediately, we see that the linear fit doesn’t seem to model this data perfectly, it exhibits some nonlinearity. We’ll use a polynomial regression in order to see if we can improve that fit and capture the curvature. We will first fit a linear model as a benchmark.

mpg_hp_linear_mod = bmb.Model("mpg ~ horsepower", df_mpg)
mpg_hp_linear_fit = mpg_hp_linear_mod.fit(
    idata_kwargs={"log_likelihood": True}, random_seed=SEED
)
mpg_hp_linear_mod.predict(mpg_hp_linear_fit, kind="response")

fig = plt.figure()
for p in [.68, .95]:
    bmb.interpret.plot_predictions(
        mpg_hp_linear_mod,
        mpg_hp_linear_fit,
        "horsepower",
        pps=True,
        legend=True,
        prob=p,
        ax=plt.gca()
    )
sns.scatterplot(data=df_mpg, x="horsepower", y="mpg", color='blue', label='True Data');

Linear fit predictions

Looking at this plot with the 68% and 95% CIs shown, the fit looks okay. Most notably, at about 160 hp, the data diverge from the fit pretty drastically. The fit at low hp values isn’t particularly good either, there’s quite a bit that falls outside of our 95% CI. This can be accented pretty heavily by looking at the residuals from the mean of the model.

predicted_mpg = mpg_hp_linear_fit.posterior["mu"].mean(("chain", "draw"))
residuals = df_mpg["mpg"] - predicted_mpg
sns.scatterplot(data=df_mpg, x="horsepower", y=residuals)
plt.axhline(0, color='black', lw=2)
plt.ylabel("Residuals")
plt.title('Residuals for linear model')

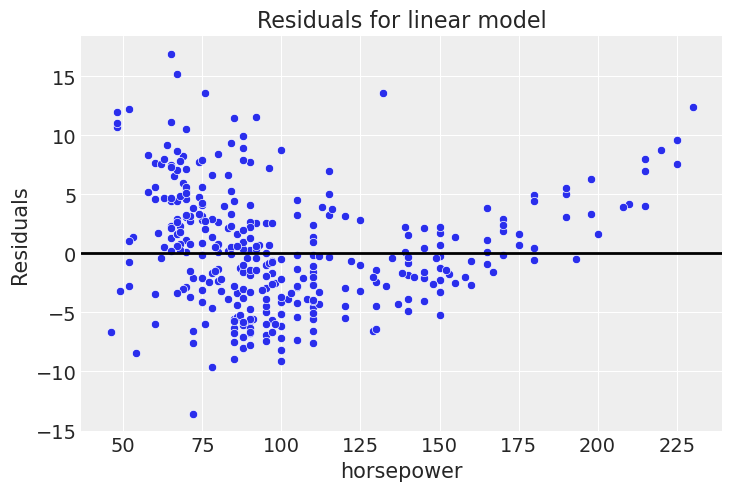

Linear model residuals

This is definitely not flat like we would ideally like it.

Next we fit a polynomial regression, including a square term.

mpg_hp_sq_mod = bmb.Model("mpg ~ poly(horsepower, 2)", df_mpg)
mpg_hp_sq_fit = mpg_hp_sq_mod.fit(
    idata_kwargs={"log_likelihood": True}, random_seed=SEED
)
mpg_hp_sq_mod.predict(mpg_hp_sq_fit, kind="response")

fig = plt.figure()
for p in [.68, .95]:
    bmb.interpret.plot_predictions(
        mpg_hp_sq_mod,
        mpg_hp_sq_fit,
        "horsepower",
        pps=True,
        legend=True,
        prob=p,
        ax=plt.gca()
    )
sns.scatterplot(data=df_mpg, x="horsepower", y="mpg", color='blue', label='True Data')
plt.title("Quadratic Fit")

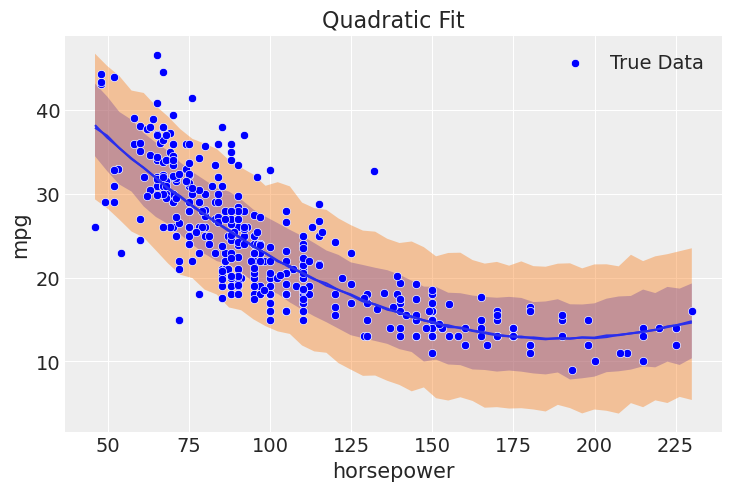

Quadratic fit predictions

Visually, this seems to look better. Particularly at high values, the model follows the pattern in the data much, much better, since we allow for curvature by including the polynomial term. Generating the same residual plot gives the following,

predicted_mpg = mpg_hp_sq_fit.posterior["mu"].mean(("chain", "draw"))
residuals = df_mpg["mpg"] - predicted_mpg
sns.scatterplot(data=df_mpg, x="horsepower", y=residuals)
plt.axhline(0, color='black', lw=2)
plt.ylabel("Residuals")
plt.title('Residuals for quadratic model')

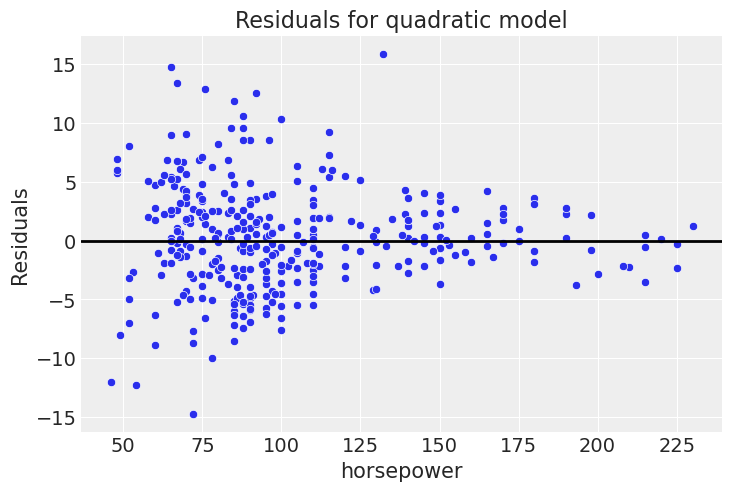

Quadratic model residuals

This is far closer to flat than before.

For a true comparison, we can look at the elpd difference between the models.

az.compare({"Linear": mpg_hp_linear_fit, "Quadratic": mpg_hp_sq_fit})

           rank     elpd_loo     p_loo  elpd_diff    weight         se       dse  warning scale
Quadratic     0 -1137.318163  4.249899    0.00000  0.915146  18.118029   0.00000    False   log
Linear        1 -1181.836583  3.362876   44.51842  0.084854  15.124216  10.37422    False   log

The quadratic model performs better by LOO-CV.

Cautionary Tales

Last, we’re going to investigate a couple of pitfalls with polynomial regression.

Fitting too many polynomial degrees

Typically, when fitting a statistical model, you want to come to your data with a hypothesis and motivate your polynomial degree based on domain knowledge and expertise with the data. Instead of being principled, we’re going to throw caution to the wind and iteratively fit models from degree 1-10 and then see which performs best.

poly_fits, poly_models = {}, {}
for degree in range(1, 10):
    model = bmb.Model(f"mpg ~ poly(horsepower, {degree})", df_mpg)
    fit = model.fit(
        idata_kwargs={"log_likelihood": True}, random_seed=SEED, progressbar=False
    )
    poly_models[f"Poly{degree}"] = model
    poly_fits[f"Poly{degree}"] = fit

cmp = az.compare(poly_fits)
cmp

       rank     elpd_loo      p_loo  elpd_diff    weight         se       dse  warning scale
Poly7     0 -1133.197215   9.458617   0.000000  0.649372  18.880097   0.000000    False   log
Poly6     1 -1134.193525   8.909358   0.996310  0.000000  18.614197   1.827800     True   log
Poly8     2 -1134.296370  10.653330   1.099154  0.000000  18.876017   0.609013    False   log
Poly5     3 -1134.866504   7.696208   1.669289  0.000000  18.554120   3.508807    False   log
Poly9     4 -1135.238197  12.004611   2.040982  0.000000  18.951758   1.579663    False   log
Poly2     5 -1137.318129   4.249865   4.120914  0.000000  18.118010   6.509055    False   log
Poly3     6 -1137.990983   5.376918   4.793768  0.285760  18.402214   7.003322    False   log
Poly4     7 -1138.858924   7.061455   5.661709  0.000000  18.308157   6.200712    False   log
Poly1     8 -1181.870350   3.400270  48.673135  0.064868  15.124141  11.007970    False   log

A 7th-degree polynomial seems to do better than the quadratic one we fit before. But we must also notice that most ELPD values are very similar. Let’s do a plot, so we can more easily grasp how different models are according to the ELPD. We are going to use az.plot_compare, and we are going to add a blue band to indicate models that have an ELPD difference of less than 4 with respect to the first-ranked model. Essentially models that are that close cannot be distinguished when using ELPD.

ax = az.plot_compare(cmp, figsize=(12, 4), plot_ic_diff=False, legend=False);
best_loo = cmp["elpd_loo"].iloc[0]
ax.axvspan(best_loo-4, best_loo, color="C0", alpha=0.2);

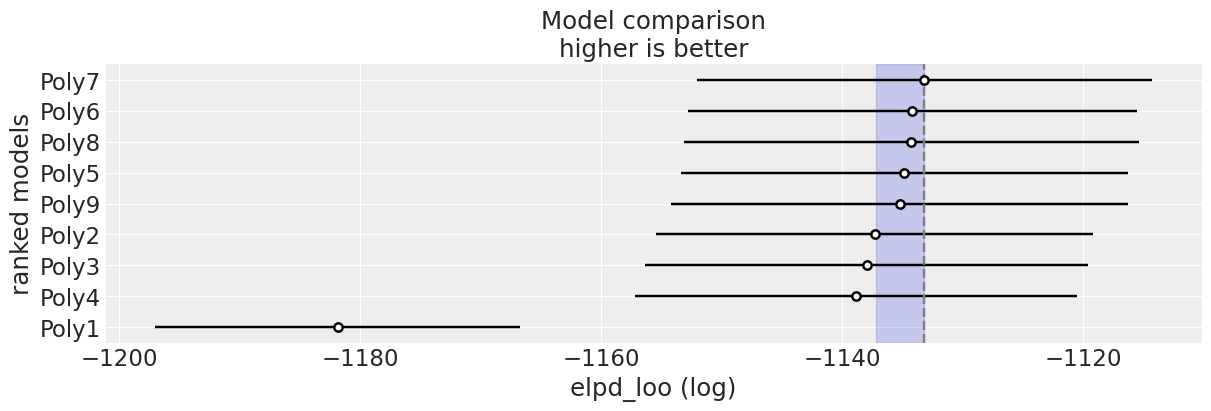

ELPD comparison

We can see that Poly6, Poly8, Poly5 and Poly9 are all very similar (within a difference of 4 units). Even more, all models except Poly1 have overlapping standard errors.

Overall, this is telling us that there is no clear gain in predictive performance once we move beyond a quadratic model. If we want to pick a single model, then we need another criteria to decide. If we have no reason to prefer a more complex model, choosing the simpler one (Poly2 in this example) is a good heuristic.

Before deciding let’s do a couple more plots. First, see what those residuals look like!

best_model = poly_models["Poly7"]
best_fit = poly_fits["Poly7"]
best_model.predict(best_fit, kind="response")

predicted_mpg = best_fit.posterior["mu"].mean(("chain", "draw"))
residuals = df_mpg["mpg"] - predicted_mpg
sns.scatterplot(data=df_mpg, x="horsepower", y=residuals)
plt.axhline(0, color='black', lw=2)
plt.ylabel("Residuals")
plt.title('Residuals for degree 7 model');

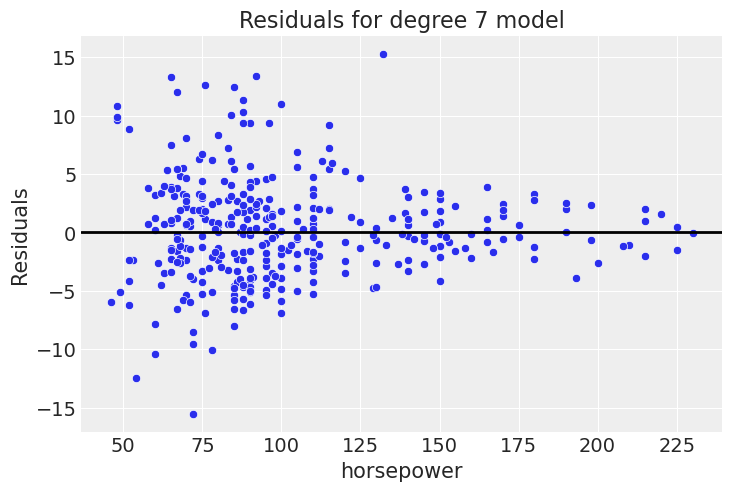

Poly7 residuals

Hey, that looks pretty good, the residuals appear nice and flat. Before we go full steam ahead with this model, let’s take a look at the posterior predictive distribution.

fig = plt.figure()
for p in [.68, .95]:
    bmb.interpret.plot_predictions(
        best_model,
        best_fit,
        "horsepower",
        pps=True,
        legend=True,
        prob=p,
        ax=plt.gca()
    )
sns.scatterplot(data=df_mpg, x="horsepower", y="mpg", color='blue', label='True Data')
plt.title("Best Fit Model: 7th Degree Polynomial");

Poly7 predictions

Uh-oh. You can see that while this gave the best elpd, and had a nice residual plot, it’s obviously overfit, as expected given that we already showed that the difference with the quadratic model is small. Given our knowledge about how cars operate, we expect a decreasing trend of fuel efficiency at higher horsepower. The 7th degree polynomial absolutely is not consistent with that. First, looking at the low values, it increases before starting the decreasing trend. Second, it starts to go back up at the high end of the data, strongly latching onto a couple of points that are likely driven by noise.

This behavior evokes the classic quote,

“With four parameters I can fit an elephant, and with five I can make him wiggle his trunk.” - John von Neumann

The takeaway here is that as you fit higher polynomial degrees, you increase the risk of overfitting.

Extrapolation of polynomial models

With any model, we should be careful when extrapolating and ensure our assumptions hold, but this particularly applies when considering polynomial regression. Since we consider the higher order polynomials, terms can quickly blow up outside of our domain.

For example, with the quadratic fit, we see that the drop in mpg flattens out at higher horsepower. However, if you look closely at the posterior predictive of the quadratic model, you can start to see the fit rise again at the end. But, if we extend this beyond the bounds, due to the curvature of a second degree polynomial, we see a reversal of the negative effect on horsepower, where our quadratic model implies a higher horsepower leads to better mpg.

extrapolate_x_hp = np.linspace(0, 500, 250)
mpg_hp_sq_mod.predict(mpg_hp_sq_fit, data=pd.DataFrame({"horsepower": extrapolate_x_hp}))

sns.scatterplot(data=df_mpg, x="horsepower", y="mpg", color='blue', label='True Data')
plt.plot(
    extrapolate_x_hp,
    mpg_hp_sq_fit.posterior["mu"].mean(("chain", "draw")),
    color="red",
    label="Extrapolated Fit",
)
plt.xlim(left=0, right=extrapolate_x_hp.max())
plt.legend(frameon=False)

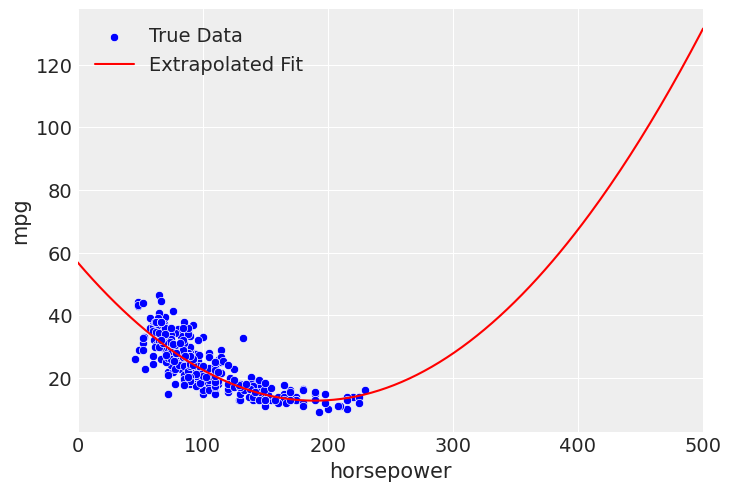

Quadratic extrapolation

This is strictly untrue based on what we know about cars and what we’ve seen in the data, so you would not want to use the model outside of the intended domain. If that is the goal, you would want to find a more appropriate specification. Something like an exponential or inverse fit may be appropriate, in order to make sure the fit approaches 0, while still forbidding predictions below 0.

Extrapolation issues are not unique to polynomial regression, for example we run into forbidden values with linear regression when extrapolating too.

mpg_hp_linear_mod.predict(
    mpg_hp_linear_fit, data=pd.DataFrame({"horsepower": extrapolate_x_hp})
)
sns.scatterplot(data=df_mpg, x="horsepower", y="mpg", color='blue', label='True Data')

plt.plot(
    extrapolate_x_hp,
    mpg_hp_linear_fit.posterior["mu"].mean(("chain", "draw")),
    color="red",
    label="Predicted"
)
plt.fill_between(
    extrapolate_x_hp, plt.ylim()[0], 0,
    color='grey', alpha=0.5, label="MPG Forbidden region"
)
plt.xlim(left=0, right=extrapolate_x_hp.max())
plt.ylim(bottom=mpg_hp_linear_fit.posterior["mu"].mean(("chain", "draw")).min())
plt.legend(frameon=False);

Linear extrapolation

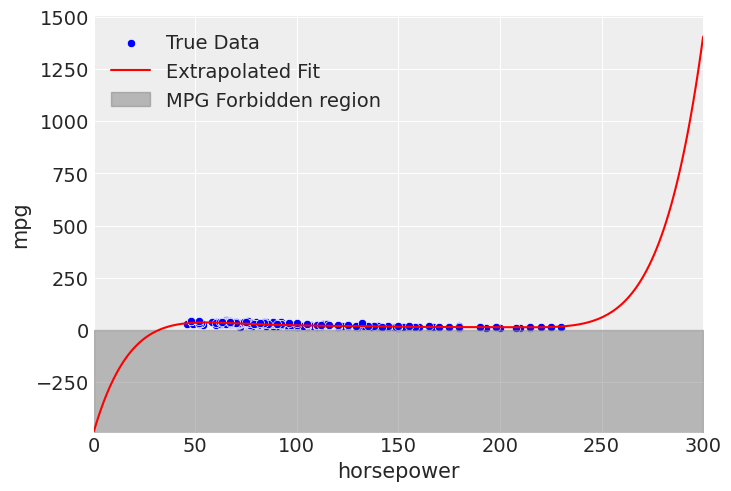

However, it is highlighted in this notebook because, due to the nature of polynomial regression, it can be very sensitive outside the fitting domain. Just for fun to wrap this notebook up, we will take a look at what the 7th order “best model” does outside of where we fit the model.

extrapolate_x_hp = np.linspace(0, 300, 250)
best_model.predict(best_fit, data=pd.DataFrame({"horsepower": extrapolate_x_hp}))

sns.scatterplot(data=df_mpg, x="horsepower", y="mpg", color='blue', label='True Data')
plt.plot(
    extrapolate_x_hp,
    best_fit.posterior["mu"].mean(("chain", "draw")),
    color="red",
    label="Extrapolated Fit",
)
plt.fill_between(
    extrapolate_x_hp, plt.ylim()[0], 0,
    color='grey', alpha=0.5, label="MPG Forbidden region"
)
plt.xlim(left=0, right=extrapolate_x_hp.max())
plt.ylim(bottom=best_fit.posterior["mu"].mean(("chain", "draw")).min())
plt.legend(frameon=False);

Poly7 extrapolation

Yikes.

2026

Back to Top ↑

2025

Back to Top ↑

2023

Back to Top ↑

2022

Back to Top ↑

2021

Back to Top ↑

2020

Bread!

My bread baking adventures and favorite recipes

Back to Top ↑

2019

Back to Top ↑

2018

Back to Top ↑

2017

Back to Top ↑
